Features

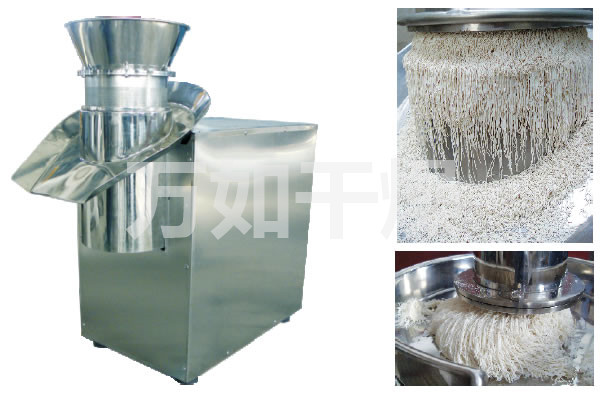

Where the machine and material contact parts are made of stainless steel, beautiful appearance, reasonable structure, granulation forming rate, particle appearance, automatic material, avoiding artificial
the material damage caused by the particles, and is suitable for assembly line.
Applications
This machine is used in pharmaceutical, foodstuff, chemical, solid drink industry, the stirred materials to the required particle, especially suitable for high viscosity materials.
Technical Specifications
| Grind cutter size(mm) | 250 | 300B | 300D |
| Particle diameter（mm） |
Φ2-2.2 (According to user needs) |
Φ1.2-3 (According to user needs) |
0.5-6 (According to user needs) |
| Dimensions（mm） | 700×540×1300 | 880×640×1300 | 1300×800×1200 |
| Motor Power（kw） | 3 | 4 | 7.5-6 |
| Weight（kg） | 350 | 400 | 780 |
|
Production capacity（kg/h） |
100-200 | 140-400 | 300-600 |
Note: Due to differences in materials, production table are for reference only
