Description

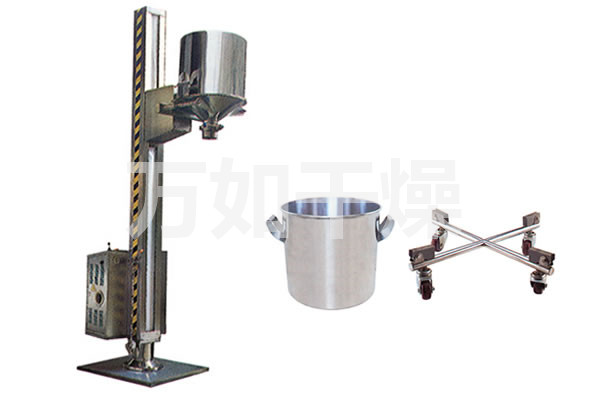

TJG series stationary lifting feeding machine consists of two parts, namely, hoist and base. Hoist consists of frame, hydraulic lifting system and the charging door reversing mechanism. In operation, the first to enhance the charging door and drum fastening machine, start the lift operating bar, rising together with the material drum door, start flipping the lever, drum fan can turn 180 degrees was bottom bucket upward posture and movement to the desired position using the butterfly valve on the discharge door, can be easily added to the material required for process equipment.
Technical Specifications

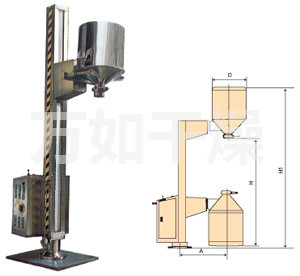

| Model Specification \ Parameters | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |
技术规格

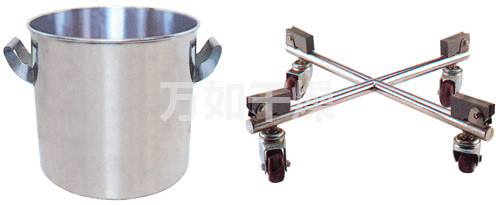

| Name | Quantity（kg） | Specifications (Aperture × height) | Wall thickness（mm） |
| Tank | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Tank special vehicles | 50-100 | Φ500×600 |
